SYSTEM- UND OEM-LÖSUNGENFITTINGS - 333 MUFFE V4A, LANG

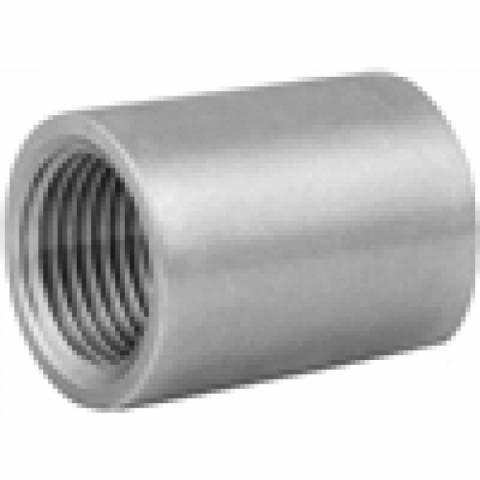

EDELSTAHLMUFFE V4A, LANG, Werkstoff 1.4571

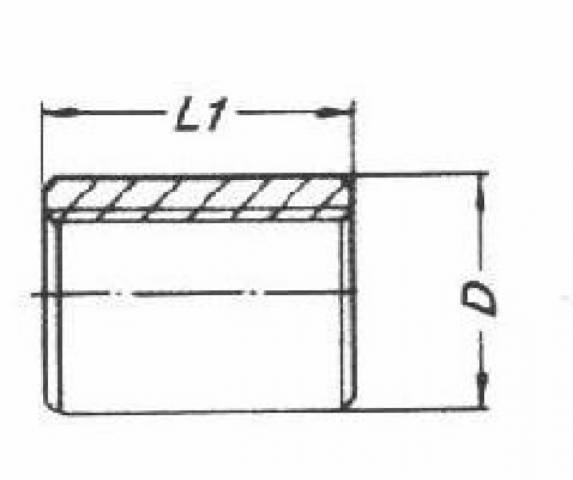

| NENNWEITE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| ARTIKELNUMMER | 333 1/4Z | 333 3/8Z | 333 1/2Z | 333 3/4Z | 333 1Z | 333 1 1/4Z | 333 1 1/2Z | 333 2Z | 333 2 1/2Z | 333 3Z | 333 4Z |
| L1 in mm | 25 | 26 | 34 | 36 | 43 | 48 | 48 | 56 | 65 | 71 | 83 |
| D in mm | 18.5 | 21.3 | 26.4 | 32.7 | 39.5 | 48.3 | 54.5 | 66.3 | 83 | 95 | 126 |
