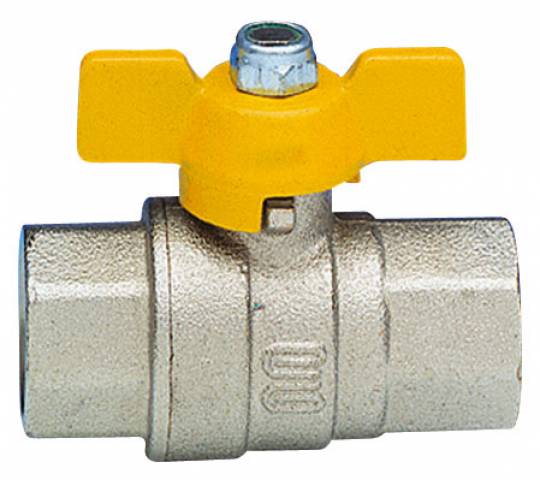

Gas-Kugelhahn, schwere Ausführung, voller Durchgang, IG/IG, Alu-Flügelgriff, Messing vernickelt.

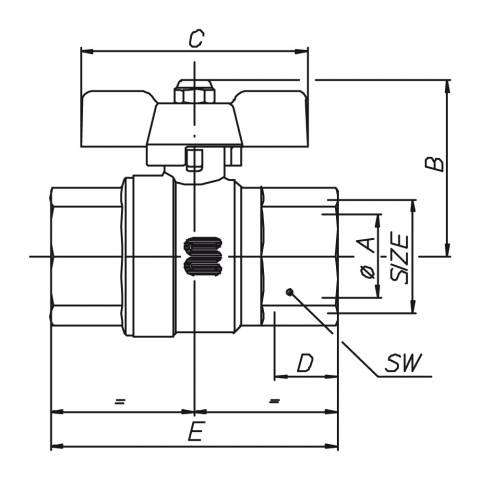

NENNWEITE | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
ARTIKELNUMMER | S0277N32 | S0277N33 | S0277N34 | S0277N35 | S0277N36 |
øA Durchgang | 10 | 10 | 15 | 20 | 25 |
B mm | 35 | 35 | 40,5 | 49,5 | 54 |
C mm | 52 | 52 | 52 | 65 | 65 |
D mm | 11 | 11,4 | 15 | 16,3 | 19,1 |
E mm | 47,5 | 49,5 | 65 | 73,5 | 86,5 |
SW mm | 17 | 21 | 26 | 32 | 39 |
Gewicht gr. | 115 | 128 | 235 | 358 | 584 |
Articolo | Specifiche |
---|---|
S0277N32 | Gas-Kugelhahn, schwere Ausführung, voller Durchgang, IG/IG, Alu-Flügelgriff, Messing vernickelt. - 1/4" - ISO |
S0277N33 | Gas-Kugelhahn, schwere Ausführung, voller Durchgang, IG/IG, Alu-Flügelgriff, Messing vernickelt. - 3/8" - ISO |
S0277N34 | Gas-Kugelhahn, schwere Ausführung, voller Durchgang, IG/IG, Alu-Flügelgriff, Messing vernickelt. - 1/2" - ISO |
S0277N35 | Gas-Kugelhahn, schwere Ausführung, voller Durchgang, IG/IG, Alu-Flügelgriff, Messing vernickelt. - 3/4" - ISO |
S0277N36 | Gas-Kugelhahn, schwere Ausführung, voller Durchgang, IG/IG, Alu-Flügelgriff, Messing vernickelt. - 1" - ISO |
Druck/Temperatur-Diagramm (Prüfung mit Wasser ausgeführt) |
Druckverlust-Diagramm |
![]() |
|
Durchfluss=m3/h |
